Mola Amarela – BRA – ByR Componentes para Moldes

Mola Amarela – BRA

Categorias: Componentes Padronizados, Molas Tag: bruyrubio

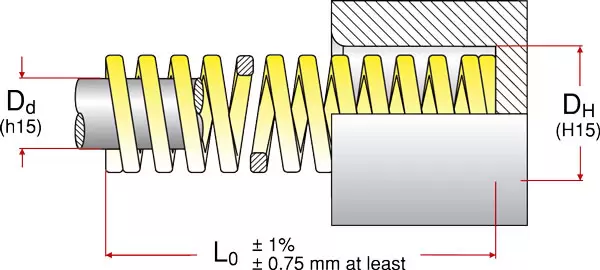

Tabela de dimensões

* Na tabela abaixo, na última coluna sem título, quando ocorrer; arquivo compactado com desenhos técnicos.

Código	DH	Dd	LO	R	A	A	B	B	C	C	D	D	E
	Hole Diameter	Rod Diameter	Free Length	Constant ±10%	25%L₀	+3Mill.	30%L₀	-1,5Mill.	35%L₀	k300/k500	40%L₀	k100/k200	Aprox.
	mm	mm	mm	N/mm	mm	N	mm	N	mm	N	mm	N	mm
A-10X25	10	5	25	36.8	4.3	158	5	184	5.6	207	6.3	232	7.7	BruyRubio_A_10_x_25.step
A-10X32	10	5	32	27.9	5.4	151	6.4	179	7.2	201	8	223	10.6	BruyRubio_A_10_x_32.step
A-10X38	10	5	38	23.7	6.5	154	7.6	180	8.6	203	9.5	225	12.6	BruyRubio_A_10_x_38.step
A-10X44	10	5	44	19.2	7.5	144	8.8	169	9.9	190	11	211	13.8	BruyRubio_A_10_x_44.step
A-10X51	10	5	51	16.5	8.7	144	10.2	168	11.5	189	12.8	211	16.2	BruyRubio_A_10_x_51.step
A-10X64	10	5	64	13.2	10.9	144	12.8	169	14.4	190	16	211	20.4	BruyRubio_A_10_x_64.step
A-10X76	10	5	76	10.9	12.9	141	15.2	166	17.1	186	19	207	25.2	BruyRubio_A_10_x_76.step
A-10X305	10	5	305	2.6	51.9	135	61	159	68.6	178	76.3	198	111	BruyRubio_A_10_x_305.step
A-12,5X25	12.5	6.3	25	58.5	4.3	252	5	293	5.6	329	6.3	369	8.1	BruyRubio_A_125_x_25.step
A-12,5X32	12.5	6.3	32	43.9	5.4	237	6.4	281	7.2	316	8	351	9.9	BruyRubio_A_125_x_32.step
A-12,5X38	12.5	6.3	38	36	6.5	234	7.6	274	8.6	308	9.5	342	12.9	BruyRubio_A_125_x_38.step
A-12,5X44	12.5	6.3	44	30.3	7.5	227	8.8	267	9.9	300	11	333	14.1	BruyRubio_A_125_x_44.step
A-12,5X51	12.5	6.3	51	26.2	8.7	228	10.2	267	11.5	301	12.8	335	17.4	BruyRubio_A_125_x_51.step
A-12,5X64	12.5	6.3	64	21.2	10.9	231	12.8	271	14.4	305	16	339	21	BruyRubio_A_125_x_64-1.step
A-12,5X76	12.5	6.3	76	17.1	12.9	221	15.2	260	17.1	292	19	325	26.4	BruyRubio_A_125_x_76.step
A-12,5X89	12.5	6.3	89	14.5	15.1	219	17.8	258	20	290	22.3	323	31.5	BruyRubio_A_125_x_89.step
A-12,5X102	12.5	6.3	102	12.7	17.3	220	20.4	259	23	291	25.5	324	36	BruyRubio_A_125_x_102.step
A-12,5X305	12.5	6.3	305	4.3	51.9	223	61	262	68.6	295	76.3	328	111	BruyRubio_A_125_x_305.step
A-16X25	16	8	25	118	4.3	507	5	590	5.6	664	6.3	743	8.5	BRA-16X025.step
A-16X32	16	8	32	89	5.4	481	6.4	570	7.2	641	8	712	11	BruyRubio_A_16_x_32.step
A-16X38	16	8	38	72.1	6.5	469	7.6	548	8.6	616	9.5	685	13.2	BruyRubio_A_16_x_38.step
A-16X44	16	8	44	60.9	7.5	457	8.8	536	9.9	603	11	670	14.7	BruyRubio_A_16_x_44.step
A-16X51	16	8	51	52.3	8.7	455	10.2	533	11.5	600	12.8	669	17.7	BruyRubio_A_16_x_51.step
A-16X64	16	8	64	41.2	10.9	449	12.8	527	14.4	593	16	659	21.9	BruyRubio_A_16_x_64.step
A-16X76	16	8	76	34.1	12.9	440	15.2	518	17.1	583	19	648	27.8	BruyRubio_A_16_x_76.step
A-16X89	16	8	89	29.5	15.1	445	17.8	525	20	591	22.3	658	31.2	BruyRubio_A_16_x_89.step
A-16X102	16	8	102	25.6	17.3	443	20.4	522	23	588	25.5	653	37.9	BruyRubio_A_16_x_102.step
A-16X115	16	8	115	22.4	19.6	439	23	515	25.9	580	28.8	645	44.5	BruyRubio_A_16_x_115.step
A-16X305	16	8	305	8.4	51.9	436	61	512	68.6	576	76.3	641	113	BruyRubio_A_16_x_305.step
A-20X25	20	10	25	293	4.3	1260	5	1465	5.6	1648	6.3	1846	6.9	BruyRubio_A_20_x_25.step
A-20X32	20	10	32	224	5.4	1210	6.4	1434	7.2	1613	8	1792	9.4	BruyRubio_A_20_x_32.step
A-20X38	20	10	38	177	6.5	1151	7.6	1345	8.6	1513	9.5	1682	12	BruyRubio_A_20_x_38.step
A-20X44	20	10	44	149	7.5	1118	8.8	1311	9.9	1475	11	1639	13.5	BruyRubio_A_20_x_44.step
A-20X51	20	10	51	128	8.7	1114	10.2	1306	11.5	1469	12.8	1638	16.2	BruyRubio_A_20_x_51.step
A-20X64	20	10	64	99	10.9	1079	12.8	1267	14.4	1426	16	1584	21.2	BruyRubio_A_20_x_64.step
A-20X76	20	10	76	81.7	12.9	1054	15.2	1242	17.1	1397	19	1552	24.7	BruyRubio_A_20_x_76.step
A-20X89	20	10	89	69.5	15.1	1049	17.8	1237	20	1392	22.3	1550	28.8	BruyRubio_A_20_x_89.step
A-20X102	20	10	102	60.6	17.3	1048	20.4	1236	23	1391	25.5	1545	34.8	BruyRubio_A_20_x_102.step
A-20X115	20	10	115	53	19.6	1039	23	1219	25.9	1371	28.8	1526	39	BruyRubio_A_20_x_115.step
A-20X127	20	10	127	47.5	21.6	1026	25.4	1207	28.6	1357	31.8	1511	43	BruyRubio_A_20_x_127.step
A-20X139	20	10	139	43	23.8	1023	28	1204	31.3	1345	35	1505	45.3	BruyRubio_A_20_x_139.step
A-20X152	20	10	152	39	25.8	1006	30.4	1186	34.2	1334	38	1482	50.4	BruyRubio_A_20_x_152.step
A-20X305	20	10	305	21.2	51.9	1100	61	1293	68.6	1455	76.3	1618	103	BruyRubio_A_20_x_305.step
A-25X25	25	12.5	25	459	4.3	1974	5	2295	5.6	2582	6.3	2892	7.3	BruyRubio_A_25_x_25.step
A-25X32	25	12.5	32	374	5.4	2020	6.4	2394	7.2	2693	8	2992	10.7	BruyRubio_A_25_x_32.step
A-25X38	25	12.5	38	300	6.5	1950	7.6	2280	8.6	2580	9.5	2850	12	BruyRubio_A_25_x_38.step
A-25X44	25	12.5	44	244	7.5	1830	8.8	2147	9.9	2416	11	2684	14.4	BruyRubio_A_25_x_44.step
A-25X51	25	12.5	51	208	8.7	1810	10.2	2122	11.5	2392	12.8	2662	17.4	BruyRubio_A_25_x_51.step
A-25X64	25	12.5	64	161	10.9	1755	12.8	2061	14.4	2318	16	2576	21.4	BruyRubio_A_25_x_64.step
A-25X76	25	12.5	76	131	12.9	1690	15.2	1991	17.1	2240	19	2489	26.9	BruyRubio_A_25_x_76.step
A-25X89	25	12.5	89	111	15.1	1676	17.8	1976	20	2220	22.3	2475	30.9	BruyRubio_A_25_x_89.step
A-25X102	25	12.5	102	96.3	17.3	1666	20.4	1965	23	2210	25.5	2456	36.7	BruyRubio_A_25_x_102.step
A-25X115	25	12.5	115	85.7	19.6	1680	23	1971	25.9	2217	28.8	2468	40.3	BruyRubio_A_25_x_115.step
A-25X127	25	12.5	127	76.3	21.6	1648	25.4	1938	28.6	2180	31.8	2426	45.1	BruyRubio_A_25_x_127.step
A-25X139	25	12.5	139	66	23.8	1571	28	1848	31.3	2066	35	2310	47.6	BruyRubio_A_25_x_139.step
A-25X152	25	12.5	152	63.5	25.8	1638	30.4	1930	34.2	2172	38	2413	53.5	BruyRubio_A_25_x_152.step
A-25X178	25	12.5	178	53.9	30.3	1633	35.6	1919	40.1	2159	44.5	2399	63.9	BruyRubio_A_25_x_178.step
A-25X203	25	12.5	203	47	34.5	1622	40.6	1908	45.7	2147	50.8	2388	70.2	BruyRubio_A_25_x_203.step
A-25X305	25	12.5	305	30.9	51.9	1604	61	1885	68.6	2121	76.3	2358	110	BruyRubio_A_25_x_305.step
A-32X38	32	16	38	480	6.5	3120	7.6	3648	8.6	4128	9.5	4560	11.4	BruyRubio_A_32_x_38.step
A-32X44	32	16	44	390	7.5	2925	8.8	3432	9.9	3861	11	4290	13.7	BruyRubio_A_32_x_44.step
A-32X51	32	16	51	320	8.7	2784	10.2	3264	11.5	3680	12.8	4096	15.6	BruyRubio_A_32_x_51.step
A-32X64	32	16	64	269	10.9	2934	12.8	3446	14.4	3876	16	4307	20	BruyRubio_A_32_x_64.step
A-32X76	32	16	76	219	12.9	2825	15.2	3329	17.1	3745	19	4161	24.4	BruyRubio_A_32_x_76.step
A-32X89	32	16	89	180	15.1	2723	17.8	3209	20	3611	22.3	4021	29.7	BruyRubio_A_32_x_89.step
A-32X102	32	16	102	155	17.3	2682	20.4	3162	23	3557	25.5	3953	35.1	BruyRubio_A_32_x_102.step
A-32X115	32	16	115	140	19,6	2744	23	3220	25,9	3623	28,8	4032	39	BRA-32X115.7z
A-32X127	32	16	127	124	21,6	2678	25,4	3150	28,6	3543	31,8	3943	42,8	BRA-32X127.7z
A-32X139	32	16	139	112	23,8	2673	28	3144	31,3	3512	35	3931	48,6	BRA-32X139.7z
A-32X152	32	16	152	102	25,8	2632	30,4	3101	34,2	3488	38	3876	52,4	BRA-32X152.7z
A-32X178	32	16	178	88,2	30,3	2672	35,6	3140	40,1	3532	44,5	3925	60,9	BRA-32X178.7z
A-32X203	32	16	203	76	34,5	2622	40,6	3086	45,7	3471	50,8	3861	69,2	BRA-32X203.7z
A-32X254	32	16	254	60,8	43,2	2627	50,8	3089	57,2	3475	63,5	3861	88,1	BRA-32X254.7z
A-32X305	32	16	305	49	51,9	2543	61	2989	68,6	3363	76,3	3739	104	BRA-32X305.7z
A-38X51	40	20	51	628	8,7	5464	10,2	6406	11,5	7206	12,8	8038	15	BRA-40X051.7z
A-38X64	40	20	64	487	10,9	5308	12,8	6234	14,4	7013	16	7792	19,5	BruyRubio_A_32_x_102.step
A-38X76	40	20	76	379	12,9	4889	15,2	5761	17,1	6481	19	7201	23,3	BruyRubio_A_32_x_102.step
A-38X89	40	20	89	321	15,1	4847	17,8	5714	20	6428	22,3	7158	26,7	BruyRubio_A_32_x_102.step
A-38X102	40	20	102	281	17,3	4861	20,4	5732	23	6449	25,5	7166	33,8	BruyRubio_A_32_x_102.step
A-38X115	40	20	115	245	19,6	4802	23	5635	25,9	6339	28,8	7056	36,2	BruyRubio_A_32_x_102.step
A-38X127	40	20	127	221	21.6	4774	25.4	5613	28.6	6315	31.8	7028	40.7	BruyRubio_A_32_x_102.step
A-38X139	40	20	139	190	23.8	4641	28	5460	31.3	6103	35	6825	44.5	BruyRubio_A_32_x_102.step
A-38X152	40	20	152	168	25.8	4334	30.4	5107	34.2	5746	38	6384	49,6	BruyRubio_A_32_x_102.step
A-38X178	40	20	178	150	30.3	4545	35.6	5340	40.1	6015	44.5	6675	59.9	BruyRubio_A_32_x_102.step
A-38X203	40	20	203	132	34.5	4554	40.6	5359	45.7	6029	50.8	6706	67.1	BruyRubio_A_32_x_102.step
A-38X254	40	20	254	107	43.2	4622	50.8	5436	57.2	6115	63.5	6795	86.3	BruyRubio_A_32_x_102.step
A-38X305	40	20	305	87.8	51.9	4557	61	5356	68.6	6025	76.3	6699	104	BruyRubio_A_32_x_102.step
A-50X64	50	25	64	709	10.9	7728	12.8	9075	14.4	10210	16	11344	19.3	BRA-50X064.7z
A-50X76	50	25	76	572	12.9	7379	15.2	8694	17.1	9781	19	10868	24.2	BRA-50X076.7z
A-50X89	50	25	89	475	15.1	7173	17.8	8455	20	9512	22.3	10593	28	BRA-50X089.7z
A-50X102	50	25	102	405	17.3	7007	20.4	8262	23	9295	25.5	10328	33.5	BRA-50X102.7z
A-50X115	50	25	115	352	19.6	6899	23	8096	25.9	9108	28.8	10138	38.6	BRA-50X115.7z
A-50X127	50	25	127	316	21.6	6826	25.4	8026	28.6	9030	31.8	10049	41.4	BRA-50X127.7z
A-50X139	50	25	139	289	23.8	6878	28	8092	31.3	9046	35	10115	47.3	BRA-50X139.7z
A-50X152	50	25	152	168	25,8	6166	30,4	7266	34,2	8174	38	9082	50,2	BRA-50X152.7z
A-50X178	50	25	178	215	30,3	6515	35,6	7654	40,1	8611	44,5	9568	61,1	BRA-50X178.7z
A-50X203	50	25	203	187	34,5	6452	40,6	7592	45,7	8541	50,8	9500	67,7	BRA-50X203.7z
A-50X254	50	25	254	153	43.2	6610	50.8	7772	57.2	8744	63.5	9716	87	BRA-50X254.7z
A-50X305	50	25	305	127	51,9	6591	61	7747	68,6	8715	76,3	9690	104	BRA-50X305.7z
A-63X76	63	38	76	952	12,9	12280	15,2	14470	n/a	n/a	n/a	n/a	15,5	BRA-63X076.7z
A-63X89	63	38	89	819	15,1	12360	17,8	14580	n/a	n/a	n/a	n/a	20	BRA-63X089.7z
A-63X102	63	38	102	700	17,3	12110	20,4	14280	23	16065	25,5	17850	30,7	BRA-63X102.7z
A-63X115	63	38	115	620	19,6	12152	23	14260	25,9	16043	28,8	17860	34,9	BRA-63X115.7z
A-63X127	63	38	127	565	21,6	12204	25,4	14351	28,6	16145	31,8	17967	38	BRA-63X127.7z
A-63X152	63	38	152	458	25,8	11816	30,4	13923	34,2	15664	38	17404	47,2	BRA-63X152.7z
A-63X178	63	38	178	384	30,3	11635	35,6	13670	40,1	15379	44,5	17088	55,8	BRA-63X178.7z
A-63X203	63	38	203	337	34,5	11627	40,6	13682	45,7	15392	50,8	17120	64,8	BRA-63X203.7z
A-63X254	63	38	254	263	43,2	11362	50,8	13360	57,2	15030	63,5	16701	86,7	BRA-63X254.7z
A-63X305	63	38	305	218	51,9	11314	61	13298	68,6	14960	76,3	16633	106	BRA-63X305.7z
