Mola Vermelha – BRR

Categorias: Componentes Padronizados, Molas Tag: bruyrubio

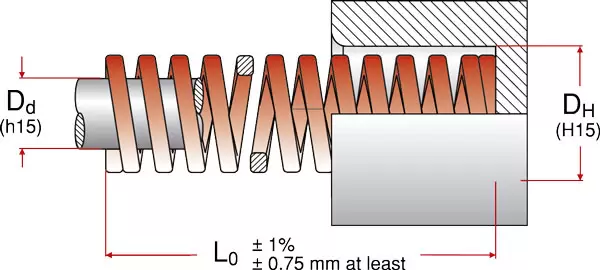

Tabela de dimensões

* Na tabela abaixo, na última coluna sem título, quando ocorrer; arquivo compactado com desenhos técnicos.

Código	DH	Dd	LO	R	A	A	B	B	C	C	D	D	E
	Hole Diameter	Rod Diameter	Free Length	Constant ±10%	25%L₀	+3Mill.	30%L₀	-1,5Mill.	35%L₀	k300/k500	40%L₀	k100/k200	Aprox.
	mm	mm	mm	N/mm	mm	N	mm	N	mm	N	mm	N	mm
RR-10X25	10	5	25	22.1	5	111	6.3	139	6.9	152	7.5	166	9.2			BRR-10X025.step
RR-10X32	10	5	32	17.5	6.4	112	8	140	8.8	154	9.6	168	12.1			BRR-10X032.step
RR-10X38	10	5	38	17.1	7.6	130	9.5	162	10.5	179	11.4	195	13.2			BRR-10X038.step
RR-10X44	10	5	44	15	8.8	132	11	165	12.1	182	13.2	198	15.1			BRR-10X044.step
RR-10X51	10	5	51	12.8	10.2	131	12.8	164	14	180	15.3	196	19.5			BRR-10X051.step
RR-10X64	10	5	64	10.7	12.8	137	16	171	17.6	188	19.2	205	21.8			BRR-10X064.step
RR-10X76	10	5	76	7.5	15.2	114	19	143	20.9	157	22.8	171	27.9			BRR-10X076.step
RR-10X305	10	5	305	2.1	61	128	76.3	160	83.9	176	91.5	192	127			BRR-10X305.step
RR-12,5X25	12.5	6.3	25	42.1	5	211	6.3	265	6.9	289	7.5	316	9.8			BRR-13X025.step
RR-12,5X32	12.5	6.3	32	33.2	6.4	212	8	266	8.8	292	9.6	319	13.6			BRR-13X032.step
RR-12,5X38	12.5	6.3	38	29.3	7.6	223	9.5	278	10.5	306	11.4	334	14.6			BRR-13X038.step
RR-12,5X44	12.5	6.3	44	24.6	8.8	216	11	271	12.1	298	13.2	325	18.1			BRR-13X044.step
RR-12,5X51	12.5	6.3	51	19.6	10.2	200	12.8	251	14	275	15.3	300	22.3			BRR-13X051.step
RR-12,5X64	12.5	6.3	64	15	12.8	192	16	240	17.6	264	19.2	288	27.3			BRR-13X064.step
RR-12,5X76	12.5	6.3	76	13.2	15.2	201	19	251	20.9	276	22.8	301	33.1			BRR-13X076.step
RR-12,5X89	12.5	6.3	89	11.4	17.8	203	22.3	254	24.5	279	26.7	304	38.9			BRR-13X089.step
RR-12,5X102	12.5	6.3	102	8.4	20.4	171	25.5	214	28.1	236	30.6	257	43.8			BRR-13X102.step
RR-12,5X305	12.5	6.3	305	2.8	61	171	76.3	214	83.9	235	91.5	256	140			BRR-13X305.step
RR-16X25	16	8	25	75.7	5	379	6.3	477	6.9	520	7.5	568	8.4			BRR-16X025.step
RR-16X32	16	8	32	52.8	6.4	338	8	422	8.8	465	9.6	507	10.5			BRR-16X032.step
RR-16X38	16	8	38	48.5	7.6	369	9.5	461	10.5	507	11.4	553	13.6			BRR-16X038.step
RR-16X44	16	8	44	42.8	8.8	377	11	471	12.1	518	13.2	565	15.9			BRR-16X044.step
RR-16X51	16	8	51	37.1	10.2	378	12.8	475	14	520	15.3	568	18.9			BRR-16X051.step
RR-16X64	16	8	64	30.3	12.8	388	16	485	17.6	533	19.2	582	24.9			BRR-16X064.step
RR-16X76	16	8	76	25.7	15.2	391	19	488	20.9	537	22.8	586	29.2			BRR-16X076.step
RR-16X89	16	8	89	21.7	17.8	386	22.3	484	24.5	531	26.7	579	34.5			BRR-16X089.step
RR-16X102	16	8	102	19.3	20.4	394	25.5	492	28.1	541	30.6	591	39.1			BRR-16X102.step
RR-16X115	16	8	115	15.7	23	361	28.8	452	31.6	497	34.5	542	44			BRR-16X115.step
RR-16X305	16	8	305	7.1	61	433	76.3	542	83.9	596	91.5	650	104			BRR-16X305.step
R-20X25	20	10	25	216	5	1080	6.3	1361	6.9	1485	7.5	1620	8.3			BRR-20X025.step
R-20X32	20	10	32	168	6.4	1075	8	1344	8.8	1478	9.6	1613	10.9			BRR-20X032.step
R-20X38	20	10	38	129	7.6	980	9.5	1226	10.5	1348	11.4	1471	12.5			BRR-20X038.step
R-20X44	20	10	44	112	8.8	986	11	1232	12.1	1355	13.2	1478	15			BRR-20X044.step
R-20X51	20	10	51	94	10.2	959	12.8	1203	14	1318	15.3	1438	17.6			BRR-20X051.step
R-20X64	20	10	64	72.1	12.8	923	16	1154	17.6	1269	19.2	1384	22.6			BRR-20X064.step
R-20X76	20	10	76	59.7	15.2	907	19	1134	20.9	1248	22.8	1361	27.5			BRR-20X076.step
R-20X89	20	10	89	50.5	17.8	899	22.3	1126	24.5	1236	26.7	1348	31.7			BRR-20X089.step
R-20X102	20	10	102	44.2	20.4	902	25.5	1127	28.1	1240	30.6	1353	37.5			BRR-20X102.step
R-20X115	20	10	115	38.4	23	883	28.8	1106	31.6	1214	34.5	1325	42.6			BRR-20X115.step
R-20X127	20	10	127	34.1	25.4	866	31.8	1084	34.9	1191	38.1	1299	45.5			BRR-20X127.step
R-20X139	20	10	139	31	28	868	35	1085	38.2	1185	42	1302	50.1			BRR-20X140.step
R-20X152	20	10	152	28.2	30.4	857	38	1072	41.8	1179	45.6	1286	55.8			BRR-20X152.step
R-20X305	20	10	305	15	61	915	76.3	1145	83.9	1258	91.5	1373	114			BRR-20X305.step
R-25X25	25	12.5	25	375	5	1875	6.3	2363	6.9	2578	7.5	2813	8.5			BRR-26X025.step
R-25X32	25	12.5	32	297	6.4	1901	8	2376	8.8	2614	9.6	2851	11			BRR-26X032.step
R-25X38	25	12.5	38	219	7.6	1664	9.5	2081	10.5	2289	11.4	2497	12.6			BRR-26X038.step
R-25X44	25	12.5	44	187	8.8	1646	11	2057	12.1	2263	13.2	2468	14.8			BRR-26X044.step
R-25X51	25	12.5	51	156	10.2	1591	12.8	1997	14	2188	15.3	2387	17.9			BRR-26X051.step
R-25X64	25	12.5	64	123	12.8	1574	16	1968	17.6	2165	19.2	2362	23.1			BRR-26X064.step
R-25X76	25	12.5	76	99	15.2	1505	19	1881	20.9	2069	22.8	2257	26.3			BRR-26X076.step
R-25X89	25	12.5	89	84	17.8	1495	22.3	1873	24.5	2056	26.7	2243	30.5			BRR-26X089.step
R-25X102	25	12.5	102	73	20.4	1489	25.5	1862	28.1	2048	30.6	2234	37.3			BRR-26X102.step
R-25X115	25	12.5	115	65	23	1495	28.8	1872	31.6	2056	34.5	2243	41.9			BRR-26X115.step
R-25X127	25	12.5	127	57.7	25.4	1466	31.8	1835	34.9	2015	38.1	2198	46.2			BRR-26X127.step
R-25X139	25	12.5	139	52.7	28	1476	35	1845	38.2	2014	42	2213	49.3			BRR-26X140.step
R-25X152	25	12.5	152	47.8	30.4	1453	38	1816	41.8	1998	45.6	2180	55.7			BRR-26X152.step
R-25X178	25	12.5	178	41	25.6	1460	44.5	1825	49	2007	53.4	2189	65.1			BRR-26X178.step
R-25X203	25	12.5	203	35.8	40.6	1453	50.8	1819	55.8	1999	60.9	2180	74.5			BRR-26X203.step
R-25X305	25	12.5	305	22.9	61	1397	76.3	1747	83.9	1921	91.5	2095	110			BRR-26X305.step
R-32X38	32	16	38	388	7.6	2949	9.5	3686	10.5	4055	11.4	4423	12.5			BRR-32X038.step
R-32X44	32	16	44	324	8.8	2851	11	3564	12.1	3920	13.2	4277	14.9			BRR-32X044.step
R-32X51	32	16	51	272	10.2	2774	12.8	3482	14	3815	15.3	4162	17.8			BRR-32X051.step
R-32X64	32	16	64	212	12.8	2714	16	3392	17.6	3731	19.2	4070	22.4			BRR-32X064.step
R-32X76	32	16	76	172	15.2	2614	19	3268	20.9	3595	22.8	3922	26.1			BRR-32X076.step
R-32X89	32	16	89	141	17.8	2510	22.3	3144	24.5	3451	26.7	3765	30.8			BRR-32X089.step
R-32X102	32	16	102	122	20.4	2489	25.5	3111	28.1	3422	30.6	3733	36.8			BRR-32X102.step
R-32x115	32	16	115	107	23	2461	28.8	3082	31.6	3384	34.5	3692	41.4			BRR-32X115.7z
R-32x127	32	16	127	93	25.4	2362	31.8	2957	34.9	3248	38.1	3543	44.4			BRR-32X127.7z
R-32x139	32	16	139	86	28	2408	35	3010	38.2	3287	42	3612	48.5			BRR-32X139.7z
R-32x152	32	16	152	78	30.4	2371	38	2954	41.8	3260	45.6	3557	54.8			BRR-32X152.7z
R-32x178	32	16	178	67.2	25.6	2392	44.5	2990	49	3289	53.4	3588	63.6			BRR-32X178.7z
R-32x203	32	16	203	59.1	40.6	2399	50.8	3002	55.8	3299	60.9	3599	72.5			BRR-32X203.7z
R-32x254	32	16	254	46.4	50.8	2357	63.5	2946	69.9	3241	76.2	3536	92.8			BRR-32X254.7z
R-32x305	32	16	305	38	61	2318	76,3	2899	83,9	3187	91,5	3477	112			BRR-32X305.7z
R-40x51	40	20	51	350	10,2	3570	12,8	4480	14	4909	15,3	5355	17			BRR-40X051.7z
R-40x64	40	20	64	269	12,8	3443	16	4304	17,6	4734	19,2	5165	21,9			BRR-40X064.7z
R-40x76	40	20	76	219	15.2	3329	19	4161	20.9	4577	22.8	4993	26,7			BRR-40X076.7z
R-40x89	40	20	89	190	17.8	3382	22.3	4237	24.5	4650	26.7	5073	31.3			BRR-40X089.7z
R-40x102	40	20	102	163	20.4	3325	25.5	4157	28.1	4572	30.6	4988	37.1			BRR-40X102.7z
R-40x115	40	20	115	142	23	3266	28.8	4090	31.6	4491	34.5	4899	41			BRR-40X115.7z
R-40x127	40	20	127	128	25.4	3251	31.8	4070	34.9	4470	38.1	4877	46.5			BRR-40X127.7z
R-40x139	40	20	139	115	28	3220	35	4025	38,2	4396	42	4830	53,1			BRR-40X139.7z
R-40x152	40	20	152	105	30,4	3192	38	3990	41,8	4389	45,6	4788	56,1			BRR-40X152.7z
R-40x178	40	20	178	89	35,6	3168	44,5	3961	49	4357	53,4	4753	67,4			BRR-40X178.7z
R-40x203	40	20	203	77	40,6	3126	50,8	3126	50,8	3912	55,8	4299	60,9	4689	76,2	BRR-40X203.7z
R-40x254	40	20	254	61	50,8	3099	63,5	3874	69,9	4261	76,2	4648	96,2			BRR-40X254.7z
R-40x305	40	20	305	51	61	3111	76,3	3891	83,9	4278	91,5	4667	115			BRR-40X305.7z
R-50x64	50	25	64	413	12,8	5286	16	4304	17,6	7269	19,2	7930	22,4			BRR-50X064.7z
R-50x76	50	25	76	339	15,2	5153	19	6441	20,9	7085	22,8	7729	26,5			BRR-50X076.7z
R-50x89	50	25	89	288	17,8	5126	22,3	6422	24,5	7049	26,7	7690	31,5			BRR-50X089.7z
R-50x102	50	25	102	245	20,4	4998	25,5	6248	28,1	6872	30,6	7497	37,6			BRR-50X102.7z
R-50x115	50	25	115	215	23	4945	28,8	6192	31,6	6799	34,5	7418	42,7			BRR-50X115.7z
R-50x127	50	25	127	192	25,4	4877	31,8	6106	34,9	6706	38,1	7315	47,5			BRR-50X127.7z
R-50x139	50	25	139	168	28	4704	35	5880	38,2	6422	42	7056	51,8			BRR-50X139.7z
R-50x152	50	25	152	154	30,4	4682	38	5852	41,8	6437	45,6	7022	57,8			BRR-50X152.7z
R-50x178	50	25	178	134	35,6	4770	44,5	5963	49	6559	53,4	7156	68,5			BRR-50X178.7z
R-50x203	50	25	203	117	40,6	4750	50,8	5944	55,8	6352	60,9	7125	77,6			BRR-50X203.7z
R-50x254	50	25	254	89	50,8	4521	63,5	5662	69,9	6217	76,2	6782	97,9			BRR-50X254.7z
R-50x305	50	25	305	73	61	4453	76,3	5570	83,9	6123	91,5	6680	121			BRR-50X305.7z
R-63x76	63	38	76	618	15,2	9394	19	11742	2,9	12916	22,8	14090	24,7			BRR-63X076.7z
R-63x89	63	38	89	515	17,8	9167	22,3	11485	24,5	12605	26,7	13751	30			BRR-63X089.7z
R-63x102	63	38	102	438	20,4	8935	25,5	11169	28,1	12286	30,6	13403	35,1			BRR-63X102.7z
R-63x115	63	38	115	370	23	8510	28,8	10656	31,6	11701	34,5	12765	37,5			BRR-63X115.7z
R-63x127	63	38	127	333	25,4	8458	31,8	10589	34,9	11630	38,1	12687	45,9			BRR-63X127.7z
R-63x152	63	38	152	269	30,4	8178	38	10222	41,8	11244	45,6	12266	56,5			BRR-63X152.7z
R-63x178	63	38	178	226	35,6	8046	44,5	10057	49	11063	53,4	12068	66,8			BRR-63X178.7z
R-63x203	63	38	203	198	40,6	8039	50,8	10058	55,8	11053	60,9	12058	78,8			BRR-63X203.7z
R-63x254	63	38	254	155	50,8	7874	63,5	9843	69,9	10827	76,2	11811	102			BRR-63X254.7z
R-63x305	63	38	305	128	61	7808	76,3	9766	83,9	10736	91,5	11712	122			BRR-63X305.7z
