Pino Extrator D

Pino Extrator D

Categorias: , Tag:
Loading...
Pino Extrator D
D
Clique aqui pra download do Descritivo Técnico do Produto (em formato PDF)

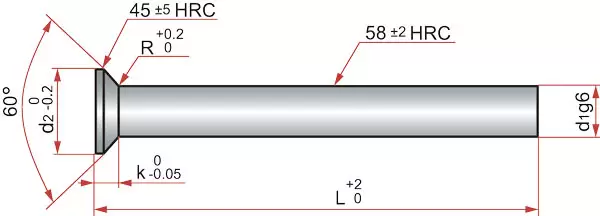

Tabela de dimensões

* Na tabela abaixo, na última coluna sem título, quando ocorrer; arquivo compactado com desenhos técnicos.

CódigoRkd2d1L
D-1x700.41.191.8170D-1x70-1.7z
D-1x1000.41.191.81100D-1x100-1.7z
D-1x1250.41.191.81125D-1x125-1.7z
D-1x1600.41.191.81160D-1x160-1.7z
D-1x2000.41.191.81200D-1x200-1.7z
D-1,1x700.41.111.81.170D-11x70-1.7z
D-1,1x1000.41.111.81.1100D-11x100-1.7z
D-1,1x1250.41.111.81.1125D-11x125-1.7z
D-1,1x1600.41.111.81.1160D-11x160-1.7z
D-1,1x2000.41.111.81.1200D-11x200-1.7z
D-1,2x700.41.1921.270D-12x70-1.7z
D-1,2x1000.41.1921.2100D-12x100-1.7z
D-1,2x1250.41.1921.2125D-12x125-1.7z
D-1,2x1600.41.1921.2160D-12x160-1.7z
D-1,2x2000.41.1921.2200D-12x200-1.7z
D-1,25x700.41.1521.2570D-125x70-1.7z
D-1,25x1000.41.1521.25100D-125x100-1.7z
D-1,25x1250.41.1521.25125D-125x125-1.7z
D-1,25x1600.41.1521.25160D-125x160-1.7z
D-1,25x2000.41.1521.25200D-125x200-1.7z
D-1,3x700.41.1121.370D-13x70-1.7z
D-1,3x1000.41.1121.3100D-13x100-1.7z
D-1,3x1250.41.1121.3125D-13x125-1.7z
D-1,3x1600.41.1121.3160D-13x160-1.7z
D-1,3x2000.41.1121.3200D-13x200-1.7z
D-1,4x700.41.192.21.470D-14x70-1.7z
D-1,4x1000.41.192.21.4100D-14x100-1.7z
D-1,4x1250.41.192.21.4125D-14x125-1.7z
D-1,4x1600.41.192.21.4160D-14x160-1.7z
D-1,4x2000.41.192.21.4200D-14x200-1.7z
D-1,5x800.41.112.21.580D-15x80-1.7z
D-1,5x1000.41.112.21.5100D-15x100-1.7z
D-1,5x1250.41.112.21,5125D-15x125-1.7z
D-1,5x1600.41.112.21,5160D-15x160-1.7z
D-1,5x2000.41.112.21,5200D-15x200-1.7z
D-1,6x700.41,282.51,670D-16x70-1.7z
D-1,6x1000.41,282.51,6100D-16x100-1.7z
D-1,6x1250.41,282.51,6125D-16x125-2.7z
D-1,6x1600.41,282.51,6160D-16x160-2.7z
D-1,6x2000.41,282.51,6200D-16x200-2.7z
D-1,7x700.41,192,51,770D-17x70-1.7z
D-1,7x1000.41,192,51,7100D-17x100-1.7z
D-1,7x1250.41,192,51,7125D-17x125-1.7z
D-1,7x1600.41,192,51,7160D-17x160-1.7z
D-1,7x2000.41,192,51,7200D-17x200-1.7z
D-1,75x700.41,412,81,7570D-175x70-1.7z
D-1,75x1000.41,412,81,75100D-175x100-1.7z
D-1,75x1250.41,412,81,75125D-175x125-1.7z
D-1,75x1600.41,412,81,75160D-175x160-1.7z
D-1,75x2000.41,412,81,75200D-175x200-1.7z
D-1,8x700.41,372,81,870
D-1,8x1000.41,372,81,8100
D-1,8x1250.41,372,81,8125D-18x125-1.7z
D-1,8x1600.41,372,81,8160D-18x160-1.7z
D-1,8x2000.41,372,81,8200D-18x200-1.7z
D-1,9x700.41,282,81,970D-19x70-1.7z
D-1,9x1000.41,282,81,9100D-19x100-1.7z
D-1,9x1250.41,282,81,9125D-19x125-1.7z
D-1,9x1600.41,282,81,9160D-19x160-1.7z
D-1,9x2000.41,282,81,9200D-19x200-1.7z
D-2x800.41,373280D-2x80-1.7z
D-2x1000.41,3732100D-2x100-1.7z
D-2x1250.41,3732125D-2x125-1.7z
D-2x1600.41,3732160D-2x160-1.7z
D-2x1500.41,3732150D-2x150-1.7z
D-2x1600.41,3732160D-2x160-1.7z
D-2x2000.41,3732200D-2x200-1.7z
D-2x2500.41,3732250D-2x250-1.7z
D-2x3150.41,3732315D-2x315-1.7z
D-2,1x700.41,4532,170D-21x70-1.7z
D-2,1x1000.41,4532,1100D-21x100-1.7z
D-2,1x1250.41,4532,1125D-21x125-1.7z
D-2,1x1600.41,4532,1160D-21x160-1.7z
D-2,1x2000.41,4532,1200D-21x200-1.7z
D-2,2x700.41,373,22,270D-22x70-1.7z
D-2,2x1000.41,373,22,2100D-22x100-1.7z
D-2,2x1250.41,373,22,2125D-22x125-1.7z
D-2,2x1600.41,373,22,2160D-22x160-1.7z
D-2,2x2000.41,373,22,2200D-22x200-1.7z
D-2,25x700.41,593,52,2570D-225x70-1.7z
D-2,25x1000.41,593,52,25100D-225x100-1.7z
D-2,25x1250.41,593,52,25125D-225x125-1.7z
D-2,25x1600.41,593,52,25160D-225x160-1.7z
D-2,25x2000.41,593,52,25200D-225x200-1.7z
D-2,3x1000.41,543,52,3100
D-2,3x1250.41,543,52,3125
D-2,3x1600.41,543,52,3160
D-2,3x2000.41,543,52,3200
D-2,4x700.41,453,52,470D-24x70-1.7z
D-2,4x1000.41,453,52,4100D-24x100-1.7z
D-2,4x1250.41,453,52,4125D-24x125-1.7z
D-2,4x1600.41,453,52,4160D-24x160-1.7z
D-2,4x2000.41,453,52,4200D-24x200-1.7z
D-2,5x800.41,373,52,580D-25x80-1.7z
D-2,5x1000.41,373,52,5100D-25x100-1.7z
D-2,5x1250.41,373,52,5125D-25x125-1.7z
D-2,5x1500.41,373,52,5150D-25x150-1.7z
D-2,5x1600.41,373,52,5160D-25x160-1.7z
D-2,5x2000.41,373,52,5200D-25x200-1.7z
D-2,5x2500.41,373,52,5250D-25x250-1.7z
D-2,6x700.41,7142,670D-26x70-1.7z
D-2,6x1000.41,7142,6100D-26x100-1.7z
D-2,6x1250.41,7142,6125D-26x125-1.7z
D-2,6x1600.41,7142,6160D-26x160-1.7z
D-2,6x2000.41,7142,6200D-26x200-1.7z
D-2,7x700.41,6342,770D-27x70-1.7z
D-2,7x1000.41,6342,7100D-27x100-1.7z
D-2,7x1250.41,6342,7125D-27x125-1.7z
D-2,7x1600.41,6342,7160D-27x160-1.7z
D-2,7x2000.41,6342,7200D-27x200-1.7z
D-2,75x700.41,5942,7570D-275x70-1.7z
D-2,75x1000.41,5942,75100D-275x100-1.7z
D-2,75x1250.41,5942,75125D-275x125-1.7z
D-2,75x1600.41,5942,75160
D-2,75x2000.41,5942,75200
D-2,8x700.41,5442,870
D-2,8x1000.41,5442,8100
D-2,8x1250.41,5442,8125
D-2,8x1600.41,5442,8160
D-2,8x2000.41,5442,8200
D-2,9x700.41,4542,970
D-2,9x1000.41,4542,9100
D-2,9x1250.41,4542,9125
D-2,9x1600.41,4542,9160
D-2,9x2000.41,4542,9200
D-3x800.61,84,5380
D-3x1000.61,84,53100
D-3x1250.61,84,53125
D-3x1600.61,84,53160
D-3x2000.61,84,53200
D-3x2500.61,84,53250
D-3x3150.61,84,53315
D-3,1x700.61,714,53,170
D-3,1x1000.61,714,53,1100
D-3,1x1250.61,714,53,1125
D-3,1x1600.61,714,53,1160
D-3,1x2000.61,714,53,1200
D-3,2x700.61,634,53,270
D-3,2x1000.61,634,53,210
D-3,2x1250.61,634,53,2125
D-3,2x1600.61,634,53,2160
D-3,2x2000.61,634,53,2200
D-3,25x700.61,594,53,2570
D-3,25x1000.61,594,53,25100
D-3,25x1250.61,594,53,25125
D-3,25x1600.61,594,53,25160
D-3,25x2000.61,594,53,25200
D-3,3x700.61,634,53,370
D-3,3x1000.61,634,53,3100
D-3,3x1250.61,634,53,3125
D-3,3x1600.61,634,53,3160
D-3,3x2000.61,634,53,3200
D-3,4x700.61,594,53,470
D-3,4x1000.61,594,53,4100
D-3,4x1250.61,594,53,4125
D-3,4x1600.61,594,53,4160
D-3,4x2000.61,594,53,4200
D-3,5x800.61,853,580
D-3,5x1000.61,853,5100
D-3,5x1250.61,853,5125
D-3,5x1500.61,853,5150
D-3,5x1600.61,853,5160
D-3,5x2000.61,853,5200
D-3,6x700.61,7153,670
D-3,6x1000.61,7153,6100
D-3,6x1250.61,7153,6125
D-3,6x1600.61,7153,6160
D-3,6x2000.61,7153,6200
D-3,7x700.61,7153,770
D-3,7x1250.61,7153,7125
D-3,7x1600.61,7153,7160
D-3,7x2000.61,7153,7200
D-3,8x700,61,7153,870
D-3,8x1000,61,7153,8100
D-3,8x1250,61,7153,8125
D-3,8x1600,61,7153,8160
D-3,8x2000,61,7153,8200
D-3,9x700,61,85,53,970
D-3,9x1000,61,85,53,9100
D-3,9x1250,61,85,53,9125
D-3,9x1600,61,85,53,9160
D-3,9x2000,61,85,53,9200
D-4x800,61,85,5480
D-4x1000,61,85,54100
D-4x1250,61,85,54125
D-4x1600,61,85,54160
D-4x2000,61,85,54200
D-4x2500,61,85,54250
D-4x3150,61,85,54315
D-4,1x700,61,715,54,170
D-4,1x1000,61,715,54,1100
D-4,1x1250,61,715,54,1125
D-4,1x1600,61,715,54,1160
D-4,1x2000,61,715,54,1200
D-4,2x700,61,635,54,270
D-4,2x1000,61,635,54,2100
D-4,2x1250,61,635,54,2125
D-4,2x1600,61,635,54,2160
D-4,2x2000,61,635,54,2200
D-4,25x700,61,595,54,2570
D-4,25x1000,61,595,54,25100
D-4,25x1250,61,595,54,25125
D-4,25x1600,61,595,54,25160
D-4,25x2000,61,595,54,25200
D-4,4x700,61,595,54,470
D-4,4x1000,61,595,54,4100
D-4,4x1250,61,595,54,4125
D-4,4x1600,61,595,54,4160
D-4,4x2000,61,595,54,4200
D-4,5x800,61,864,580
D-4,5x1000,61,864,5100
D-4,5x1250,61,864,5125
D-4,5x1500,61,864,5150
D-4,5x1600,61,864,5160
D-4,5x2000,61,864,5200
D-4,5x2500,61,864,5250
D-4,6x700,61,7164,670
D-4,6x1000,61,7164,6100
D-4,6x1250,61,7164,6125
D-4,6x1600,61,7164,6160
D-4,6x2000,61,7164,6200
D-4,75x700,61,5964,7570
D-4,75x1000,61,5964,75100
D-4,75x1250,61,5964,75125
D-4,75x1600,61,5964,75160
D-4,75x2000,61,5964,75200
D-5x800,61,86,5580
D-5x1000,61,86,55100
D-5x1250,61,86,55125
D-5x1600,61,86,55160
D-5x2000,61,86,55200
D-5x2500,61,86,55250
D-5x3150,61,86,55315
D-5,1x700,61,716,55,170
D-5,1x1000,61,716,55,1100
D-5,1x1250,61,716,55,1125
D-5,1x1600,61,716,55,1160
D-5,1x2000,61,716,55,1200
D-5,2x700,61,636,55,270
D-5,2x1000,61,636,55,2100
D-5,2x1250,61,636,55,2125
D-5,2x1600,61,636,55,2160
D-5,2x2000,61,636,55,2200
D-5,25x700,61,596,55,2570
D-5,25x1000,61,596,55,25100
D-5,25x1250,61,596,55,25125
D-5,25x1600,61,596,55,25160
D-5,25x2000,61,596,55,25200
D-5,3x700,61,636,55,370
D-5,3x1000,61,636,55,3100
D-5,3x1250,61,636,55,3125
D-5,3x1600,61,636,55,3160
D-5,3x2000,61,636,55,3200
D-5,4x700,61,596,55,470
D-5,4x1000,61,596,55,4100
D-5,4x1250,61,596,55,4125
D-5,4x1600,61,596,55,4160
D-5,4x2000,61,596,55,4200
D-5,5x800,61,875,580
D-5,5x1000,61,875,5100
D-5,5x1250,61,875,5125
D-5,5x1500,61,875,5150
D-5,5x1600,61,875,5160
D-5,5x2000,61,875,5200
D-5,5x2500,61,875,5250
D-5,6x7011,7175,670
D-5,6x10011,7175,6100
D-5,6x12511,7175,6125
D-5,6x16011,7175,6160
D-5,6x20011,7175,6200
D-5,75x7011,5975,7570
D-5,75x10011,5975,75100
D-5,75x12511,5975,75125
D-5,75x16011,5975,75160
D-5,75x20011,5975,75200
D-6x8012,238680
D-6x10012,2386100
D-6x12512,2386125
D-6x16012,2386160
D-6x20012,2386200
D-6x25012,2386250
D-6x31512,2386315
D-6,5x7013,1796,570
D-6,5x10013,1796,5100
D-6,5x12513,1796,5125
D-6,5x16013,1796,5160
D-6,5x20013,1796,5200
D-6,5x25013,1796,5250
D-7x8012,739780
D-7x10012,7397100
D-7x12512,7397125
D-7x15012,7397150
D-7x16012,7397160
D-7x20012,7397200
D-7x25012,7397250
D-7x31512,7397315
D-7,5x7013,17107,570
D-7,5x10013,17107,5100
D-7,5x12513,17107,5125
D-7,5x16013,17107,5160
D-7,5x20013,17107,5200
D-7,5x25013,17107,5250
D-8x8012,7310880
D-8x10012,73108100
D-8x12512,73108125
D-8x16012,73108160
D-8x20012,73108200
D-8x25012,73108250
D-8x31512,73108315
D-8,5x7013,17118,570
D-8,5x10013,17118,5100
D-8,5x12513,17118,5125
D-8,5x12513,17118,5125
D-8,5x16013,17118,5160
D-8,5x20013,17118,5200
D-8,5x25013,17118,5250
D-9x8012,7311980
D-9x10012,73119100
D-9x12512,73119125
D-9x16012,73119160
D-9x20012,73119200
D-9x25012,73119250
D-9x31512,73119315
D-10x8012,73121080
D-10x10012,731210100
D-10x12512,731210125
D-10x16012,731210160
D-10x20012,731210200
D-10x25012,731210250
D-10x31512,731210315
D-12x8012,73141280
D-12x10012,731412100
D-12x12512,731412125
D-12x16012,731412160
D-12x20012,731412200
D-12x25012,731412250
D-12x31512,731412315
D-14x801,53,23161480
D-14x1001,53,231614100
D-14x1251,53,231614125
D-14x1501,53,231614150
D-14x1601,53,231614160
D-14x2001,53,231614200
D-14x2501,53,231614250
D-14x3151,53,231614315
D-16x801,53,23181680
D-16x1001,53,231816100
D-16x1251,53,231816125
D-16x1601,53,231816160
D-16x2001,53,231816200
D-16x2501,53,231816250
D-16x3151,53,231816315

Descrição

Descrição:
Extrator em aço para utilização em molde de injeção de plástico, alumínio, zamak ou borracha. Dimensões padronizadas, tolerância e materiais que seguem a norma DIN1530D.
Características:
Extratores em aço DIN 1.2210, com dureza de núcleo e superfície de 58 a 62HRC, para temperatura de trabalho no máximo de 220º C. Dimensões de 1,00 até 16mm e comprimentos de até 315mm.



Marca

Bru y Rubio
